食品级橡胶l管食品级橡胶软管

所属分类：食品级橡胶管
点击次数：0
发布日期：2020-06-12 00:00:00
在线询价

详细介绍


应用范围•高品质乳品及牛奶用橡胶软管，适用于吸入和输送牛奶、其副产品及脂肪性流体。

•广泛应用于乳品厂、食用油厂、奶酪厂或其他食品厂。特别适用于需要很好的弯曲性能和大量需求环境下的应用。

显著特性

•无增塑剂、无动物衍生的内管，防止细菌扩散，并确保对输送产品不会发生接触性污染。

•软管表层合成材料能抵抗普通清洁剂，拥有良好的耐大气侵蚀和耐老化性能。

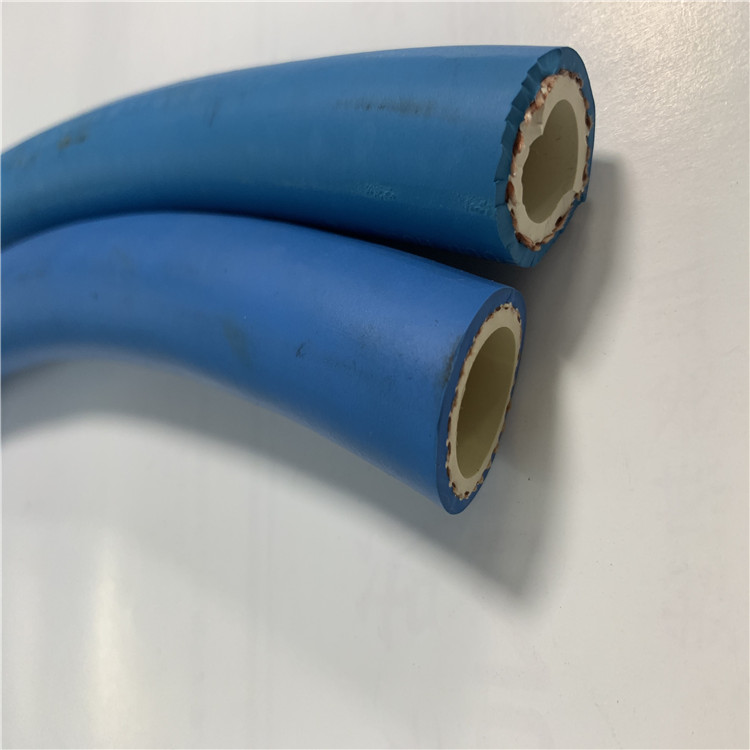

软管结构：

内管：NBR橡胶 (丁纳橡胶,NAB90)，白色，食品级，无臭味，无味道，平滑，镜面光滑。

加强层结构：高强度多层合成纤维，植入螺旋型金属钢线。

外层合成橡胶，蓝色，抗磨损，耐大气侵蚀，耐老化，平滑，布状表面。

APPLICATION •Premium milk and dairy rubber hose specifically designed to convey milk and deriva-tives and liquid fatty foodstuffs in general. For suction and delivery purposes.

•Ideal solution in dairies, edible oil mills, cheese productions and food industries in general

where the resistance to demanding applications together with flexibility in use are required.

MAIN BENEFITS

•The special structure totally free from plasticisers and animal derivatives reduces any potential risks of bacteria proliferation and cross contamination of the media conveyed. •The composition of its rubber cover exhibits a good resistance against chemical

cleaning products and grants utmost resistance to weather and ageing.

CONSTRUCTION -

TUBE

NBR rubber (NAB90), clear, food quality, odourless and tasteless, smooth, mirror-like.

REINFORCEMENTS -

Synthetic textile plies, embedded steel wire helix.

COVER

Synthetic rubber, blue colour, resistant to abrasion, weather, ageing, smooth, cloth finish.

GREATFLEX-RN20增强纤维编织NBR橡胶管
品名 PART NANE	内径 INNER DIA	壁厚 WALL THICKNESS	外径 OUTER DIA	拆弯半径 BEND RADIUS	工作压力 WORK PRESSURE		爆破压力 BURST PRESSURE		长度 LENGTH
	(mm)	+1.0/-0.5mm	(mm)	(mm)	Bar	psi	Bar	psi	M/PCS
RE20-10	9.5	3.5	16.5	70	20.0	290	80.0	1160	100
RN20-13	12.7	4.5	21.7	100	20.0	290	80.0	1160	100
RN20-016	15.9	4.5	24.9	130	20.0	290	80.0	1160	60
RN20-019	19	5.5	30.0	150	20.0	290	80.0	1160	60
RN20-025	25	6	37.0	200	10.0	145	40.0	580	60
RN20-032	32	6	44.0	250	10.0	145	40.0	580	40
RN20-038	38	6.5	51.0	300	10.0	145	40.0	580	40
RN20-051	50.8	7	64.8	400	10.0	145	40.0	580	40
RN20-064	63.5	8	79.5	500	10.0	145	40.0	580	40
RN20-076	76	9	94.0	600	10.0	145	40.0	580	40
