制药级软管化工类高压软橡胶管FD31

东莞市格雷特硅胶制品有限公司

化工类高压软橡胶管FD31

Chemical high pressure rubber hose FD31

应用：广泛地配套在医药、化妆品、食品及精细化工等行业中固定或移动的设备上。可排吸高溶度的腐蚀性化学品。

优点：FEP & PTFE内管可以输送几乎所有的腐蚀性化学物质，使用寿命很长。

清洁及消毒：内壁光滑，无粘性，低渗透性，不易滋生细菌；可以用蒸汽、洗洁剂、溶剂等进行消毒。

洁净性：通过FDA认证，符合或超过3A标准的要求。

兼容性：不会污染或影响任何介质的味道，颜色或气味。

柔韧性：弯曲半径很好，并且不会产生例如金属软管的“金属疲劳”现象。

耐用性：可在恶劣环境中使用。即使在热循环中也不会受

老化或脆化。

技术参数：

内管：食品级耐化学腐蚀的FEP材质，光滑（也可提供PTFE材

质的黑色导静电内胶）

增强层：高强度合成线绳，内置螺旋钢丝加强

外管：耐老化耐腐蚀EPDM合成橡胶，绿色，表面布纹

工作温度：-40℃至+177℃

适用标准：FDA 21CFR 177.2600，3A

Product application:

widely used on the fixed or mobile devices of medicine indutry, cosmetics industry, food and fine chemical industry.

it can suck and delivery the high-density corrosive chemicals.

Advantages:

FEP & PTFE inner hose can transport almost all of the corrosive chemicals with long service life.

Cleaning and disinfection: the inner wall is smooth, no stickness,low permeability,not easy to breed bacteria.steaming, detergent and solvent can be used for cleaning.

Cleanness: Pass the FDA certification.Meet or exceed the requirements of 3A standards.

Compatibility: will not pollute or affect the taste, color or smell of any agent.

Flexibility: bending radius is very good,and so-called "metal fatigue" phenomenon like metal hose will not happen.

Durability: can be used in bad environments. Even in the extreme thermal cycle,it will not be Aged or embrittled.

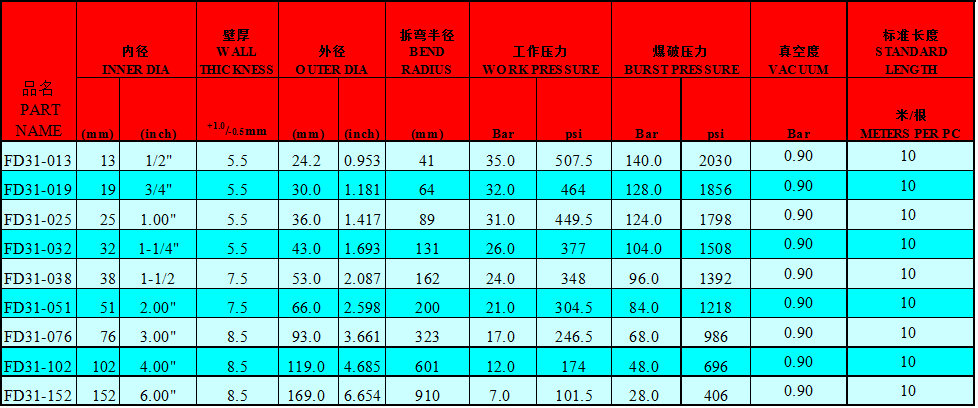

Technical parameter:

Inner tube: food grade chemical corrosion resistant FEP material,smooth (also can provide PTFE material Qualitative black conductive adhesive)

Reinforcement layer: high strength synthetic cord, the spiral steel wire reinforced inside.

Outer hose: aging resistant and corrosion resistant EPDM synthetic rubber, green,the texture surface.

Work temperature: -40 to +177degree Celsius.

Applicable standards and certification: 21CFR FDA 177.2600, 3A
