工业机械钢丝硅胶管SP70

所属分类：化工软管
点击次数：0
发布日期：2021-12-23 00:00:00
在线询价

详细介绍

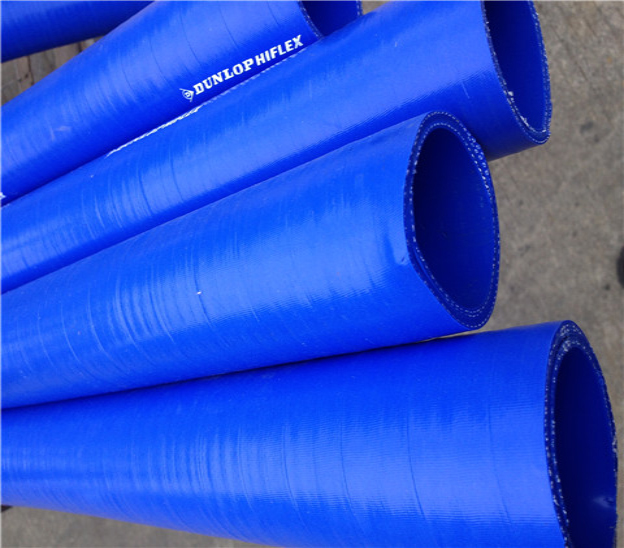

照片 740.jpg

工业机械钢丝硅胶管，特别推荐用于运输或输送工业用油，汽车发动机部件，卡车，海洋管道等。如汽车卡车类，发动机，发电机油，工业用油等。

产品结构：

编织：二层夹布网纹编织

钢丝：采用单层不锈钢丝，间距为10MM

产品特性：

——工作温度范围‘-60ºC / +180ºC (-76ºF / +356ºF)在短时间内可达到220ºC (392ºF)

——具有极好弯曲性，内壁光滑清洁，易清洗不粘水，用清洗物清洗后不附着任何残留物。

——无嗅、无味,完全无毒，不含任何塑化剂和添加剂成分。

配套接头：

TC接头（直通快速接头316L），SMS接头，DIN快接，CLAMP，CLOCK，J螺纹接头，等材质为304或316L任客户挑选。

品质认证：

——硅胶管依照欧盟指令2008/95 / ECC的限制使用某些有害物质(RoHS)认可。

Product application:

Specially recommended for transportation or transportation of industrial oil,automotive engine parts, trucks, marine pipelines, etc.

Product structure:

Weaving: two layers of cloth woven meshSteel wire: single layer of stainless steel wire,with the spacing of 10mm.

Product characteristics:

——working temperature range -60 degree C / +180 degrees C (or -76 degrees F to +356 degree F) in a short period of time,it can reach 220 degrees C (392 degrees F)

——With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,After cleaned by cleaning materials, no residue remained

——odorless, tasteless, non-toxic,without any additives and plasticizer.

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

——in accordance with EU directive 2008/95 / ECC restrictions on the use of certain hazardous substances (RoHS) approval.
