内衬氟硅胶钢丝软管FS30

东莞市格雷特硅胶制品有限公司

内衬氟硅胶钢丝软管FS30

Tellon lined silicone wire hose  FS30

注：1.标准生产长度为6米（特殊可订做10米），可以做切短。其它的内径要求可以根据客户的要求来订制。

    2.在我们在参数表中测试是依照常温，标准大气压状态。当压力不变时，温度每上升幅度100度，压力会下降百分之15。

REMARKS:

    1, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.

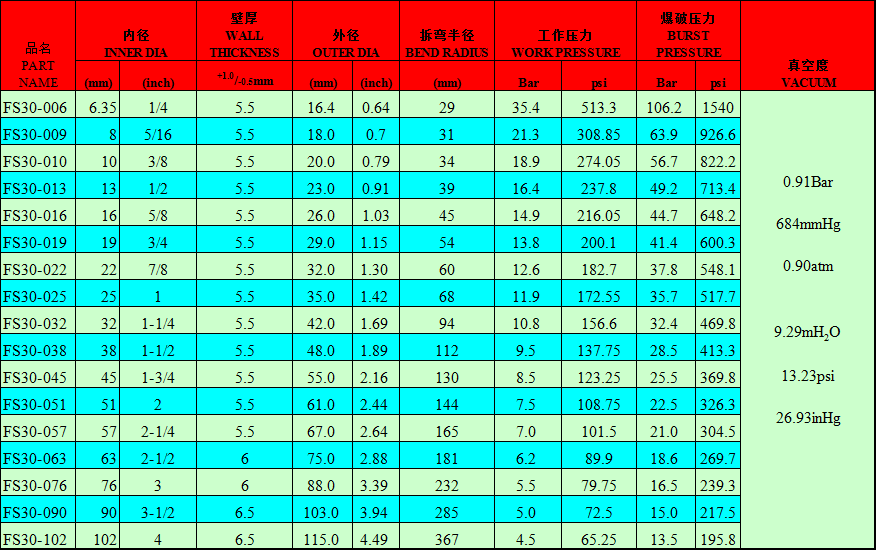

    2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state.

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

产品应用：

特别推荐用于具有耐油性能，符合食品级的要求，在化妆品类，食用油类，以及汽车类得到广泛的应用。

具有不老化，有良好的耐腐性能，有良好的机械性能和物理性能。抗拉性能好。

产品结构：

内层：内层为氟硅胶层（通常为乳白色或白色或黑色）

编织：四层层夹布网纹编织

钢丝：采用单层304不锈钢丝间距为5MM或不加钢丝，

产品特性：

——工作温度范围‘-60ºC / +180ºC (-76ºF / +356ºF)在短时间内可达到  220ºC (392ºF)

——具有极好不老化，有良好的耐腐性能，有良好的机械性能和物理性能。抗拉性能好.

品质认证：

——硅胶软管通过美国FDA 21 CFR 177.2600(食品和药物管理局)食品级认证。

Product application:

Specially recommended for oil resistant properties, in compliance with the requirements of food grade.

Widely used in the industry of cosmetics, edible oil and automobiles with good aging resistance, good corrosion resistance,

good mechanical and physical properties and good tensile properties.

Product structure:

inner layer: fluorine rubber layer (usually milky white or white or black)

Weaving:4 layers of cloth woven mesh

Steel wire: single layer of 304 stainless steel wire, the spacing is 5mm or without wire added.

Product characteristics:

-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time

-excellent aging resistance and corrosion resistance. Very good mechanical and phisical performance.Excellent tensile resistance.

Quality certification:

-silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
