波纹软管SP80

工业用软管SP80

Industrial hose SP80

注:1.标准生产长度为6米（特殊可订做10米）。可以做切短。其它的内径要求可以根据客户的要求来订制。

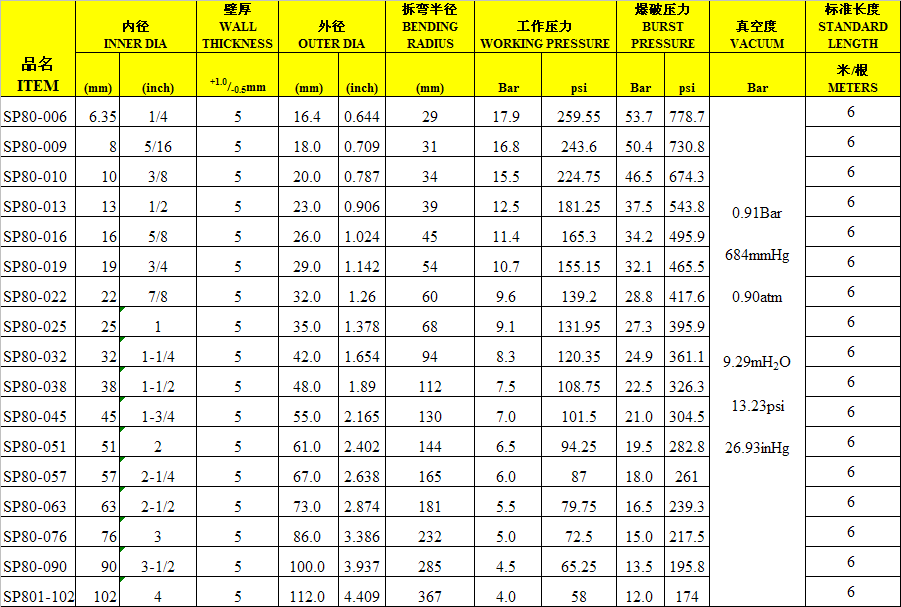

   2.在我们在参数表中测试是依照常温，标准大气压状态。当压力不变时，温度每上升幅度100度，压力会下降百分之15。

REMARKS:

1, Standard length is 6 meters and we can customize the hose length according to customers' needs.

2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

产品应用：

特别推荐用于运输或输送工业用油，汽车发动机部件，卡车，海洋管道等。

如汽车卡车类，发动机，发电机油，工业用油等。

产品结构：

编织：二层夹布网纹编织

钢丝：采用单层不锈钢丝，间距为10MM

产品特性：

—工作温度范围‘-60ºC / +180ºC (-76ºF / +356ºF)在短时间内可达到  220ºC (392ºF)

—具有很好弯曲性，内壁光滑清洁，易清洗不粘水，用清洗物清洗后不附着任何残留物。

—无嗅、无味,完全无毒，不含任何塑化剂和添加剂成分。

配套接头：

TC接头（直通快速接头316L），SMS接头，DIN快接，CLAMP，CLOCK，J螺纹接头，等材质为304或316L任客户挑选。

品质认证：

—硅胶管依照欧盟指令2008/95 / ECC的限制使用某些有害物质(RoHS)认可。

Product application:

Specially recommended for transportation or transportation of industrial oil,automotive engine parts, trucks, marine pipelines, etc.

Product structure:

Weaving: two layers of cloth woven mesh

Steel wire: single layer of stainless steel wire,with the spacing of 10mm.

Product characteristics:

-working temperature range -60 degree C / +180 degrees C (or -76 degrees F to +356 degree F)

in a short period of time,it can reach 220 degrees C (392 degrees F)

-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,After cleaned by cleaning materials, no residue remained

-odorless, tasteless, non-toxic,without any additives and plasticizer.

Supporting connectors:

TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:

-in accordance with EU directive 2008/95 / ECC restrictions on the use of certain hazardous substances (RoHS) approval.
