工业用硅胶软管SP40

您的当前位置: 首 页 > 产品展示 > > 汽车软管 > 工业用硅胶软管SP40

工业用硅胶软管SP40

  • 所属分类:汽车软管

  • 点击次数:0
  • 发布日期:2020-06-12 00:00:00
  • 在线询价
详细介绍

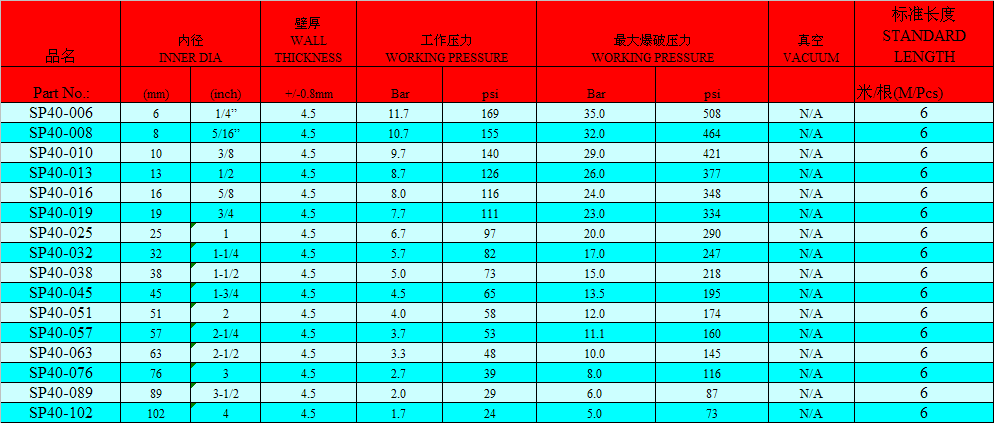

汽车硅胶软管SP40

Auto silicone hose SP40


食品级硅胶软管


注:1.测试条件为:常温常压状态下测试(室温为20度),经过严格测试温度每升高100度,压力会降低百分之15,

2.标准长度为6米,如有特殊要求可以定做10米.可以来电咨询订购.


REMARKS:

1,Test conditions: tested under normal temperature and pressure state(room temperature is 20 degrees Celsius),

When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.

2, Standard length is 6 meters or especially 10 meters and we can customize the hose length according to customers' needs.


产品应用:

本产品推荐应用于在高温高压时,可以过热空气和热水,具有良好的耐温性和耐腐性。

主要应用于公共汽车,拖车和一些特殊工况下,同时可以应用于汽车发动机。可做为汽车,货柜车,公共汽车发动机的冷却水管


产品特点:

-具有很好的压缩

-组装过程中具有良好的弯曲性和柔软性能。

-内外表面光滑,可以做蓝色,红色和黑色,同时还可以是可以根据客户的要求来定做颜色和不同规格的长度。

-具有良好的耐温性能,工作温度为-60 ºC (-75 F) to +180ºC (356 F),短时间的工作温度可以达到 200ºC (392 F)

一般长度为100*100,150*150,200*200MM,如有特殊要求可以根据客户的要求来定做.

--耐臭氧性,抗UV性能和耐老化性能.


符合标准:

1.产品符合SAE J20R1 Class A的标准

2.硅胶软管符合欧洲EU 2002/95/ECC 环保RoHS认证标准。


Product application:

This product is especially recommended for hot air and hot water going through under high temperatures and high pressures with good temperature and corrosion resistance. At high temperatures, it can be used in vehicles and in the industrial sector.

It can be used in cooling and heating systems in buses, coaches, lorries and industrial vehicles, cooling systems in the cogeneration units and marine engines, and transport of high temperature fluids in general industry.

It is recommended for connections in areas with limited space.



Product features:

- with excellent compressibility

- good bendability and flexibility during assembly.

-outer and inner hose surface is smooth with choices of blue color, red color and black color.At the same time, the color and length of this elbow can be custom made according to the customer's needs.

-with good temperature resistance,working temperature from 60 degrees C (- 75 F) to + 180 degrees C (+356 F).In short time, the temperature can reach 200 degrees C (+392 F).

-normal length is 100*100mm, 150*150mm, 200*200mm. And, the length can be customized according to customer's needs.

-Oxidation resistance, anti UV performance and aging resistance.


Regulations:

−comply with the J20R1 Class A SAE standard

-comply with the European 2002/95/ECC RoHS environmental EU certification standards
