东莞市格雷特硅胶制品有限公司
化工类高压软橡胶管FD31
Chemical high pressure rubber hose FD31
应用:广泛地配套在医药、化妆品、食品及精细化工等行业中固定或移动的设备上。可排吸高溶度的腐蚀性化学品。
优点:FEP & PTFE内管可以输送几乎所有的腐蚀性化学物质,使用寿命很长。
清洁及消毒:内壁光滑,无粘性,低渗透性,不易滋生细菌;可以用蒸汽、洗洁剂、溶剂等进行消毒。
洁净性:通过FDA认证,符合或超过3A标准的要求。
兼容性:不会污染或影响任何介质的味道,颜色或气味。
柔韧性:弯曲半径很好,并且不会产生例如金属软管的“金属疲劳”现象。
耐用性:可在恶劣环境中使用。即使在热循环中也不会受
老化或脆化。

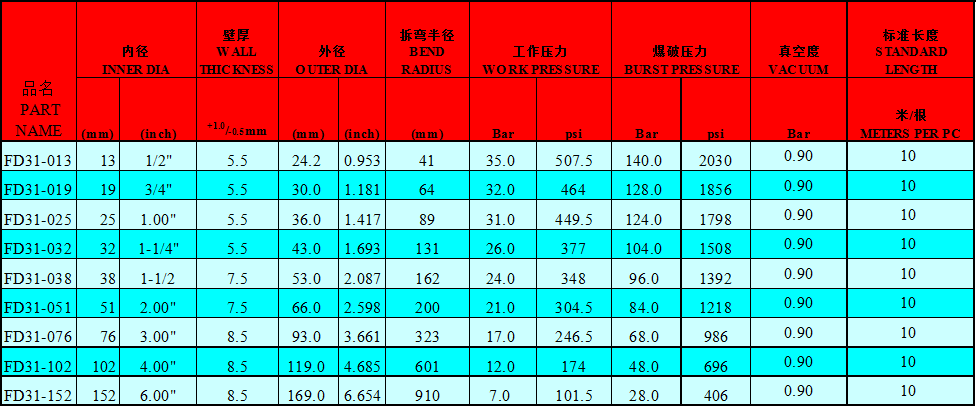

技术参数:
内管:食品级耐化学腐蚀的FEP材质,光滑(也可提供PTFE材
质的黑色导静电内胶)
增强层:高强度合成线绳,内置螺旋钢丝加强
外管:耐老化耐腐蚀EPDM合成橡胶,绿色,表面布纹
工作温度:-40℃至+177℃
适用标准:FDA 21CFR 177.2600,3A
Product application:
widely used on the fixed or mobile devices of medicine indutry, cosmetics industry, food and fine chemical industry.
it can suck and delivery the high-density corrosive chemicals.
Advantages:
FEP & PTFE inner hose can transport almost all of the corrosive chemicals with long service life.
Cleaning and disinfection: the inner wall is smooth, no stickness,low permeability,not easy to breed bacteria.steaming, detergent and solvent can be used for cleaning.
Cleanness: Pass the FDA certification.Meet or exceed the requirements of 3A standards.
Compatibility: will not pollute or affect the taste, color or smell of any agent.
Flexibility: bending radius is very good,and so-called "metal fatigue" phenomenon like metal hose will not happen.
Durability: can be used in bad environments. Even in the extreme thermal cycle,it will not be Aged or embrittled.
Technical parameter:
Inner tube: food grade chemical corrosion resistant FEP material,smooth (also can provide PTFE material Qualitative black conductive adhesive)
Reinforcement layer: high strength synthetic cord, the spiral steel wire reinforced inside.
Outer hose: aging resistant and corrosion resistant EPDM synthetic rubber, green,the texture surface.
Work temperature: -40 to +177degree Celsius.
Applicable standards and certification: 21CFR FDA 177.2600, 3A
