防静电四氟硅胶管FV30S

所属分类：新能源软管
点击次数：0
发布日期：2021-12-15 00:00:00
在线询价

详细介绍


使用范围：

内层为黑色导电FKM层，因此不仅可以输送与硅酸不相容的腐蚀性液体，例如酸或油。同时拥有极好的抗静电效果，可以广泛用于对静电要求比较高的场合，有效防止因为静电产生的火灾。同时该软管能够耐高温，能够通过脉冲或吸力，可以抵抗压力或真空。

软管结构：

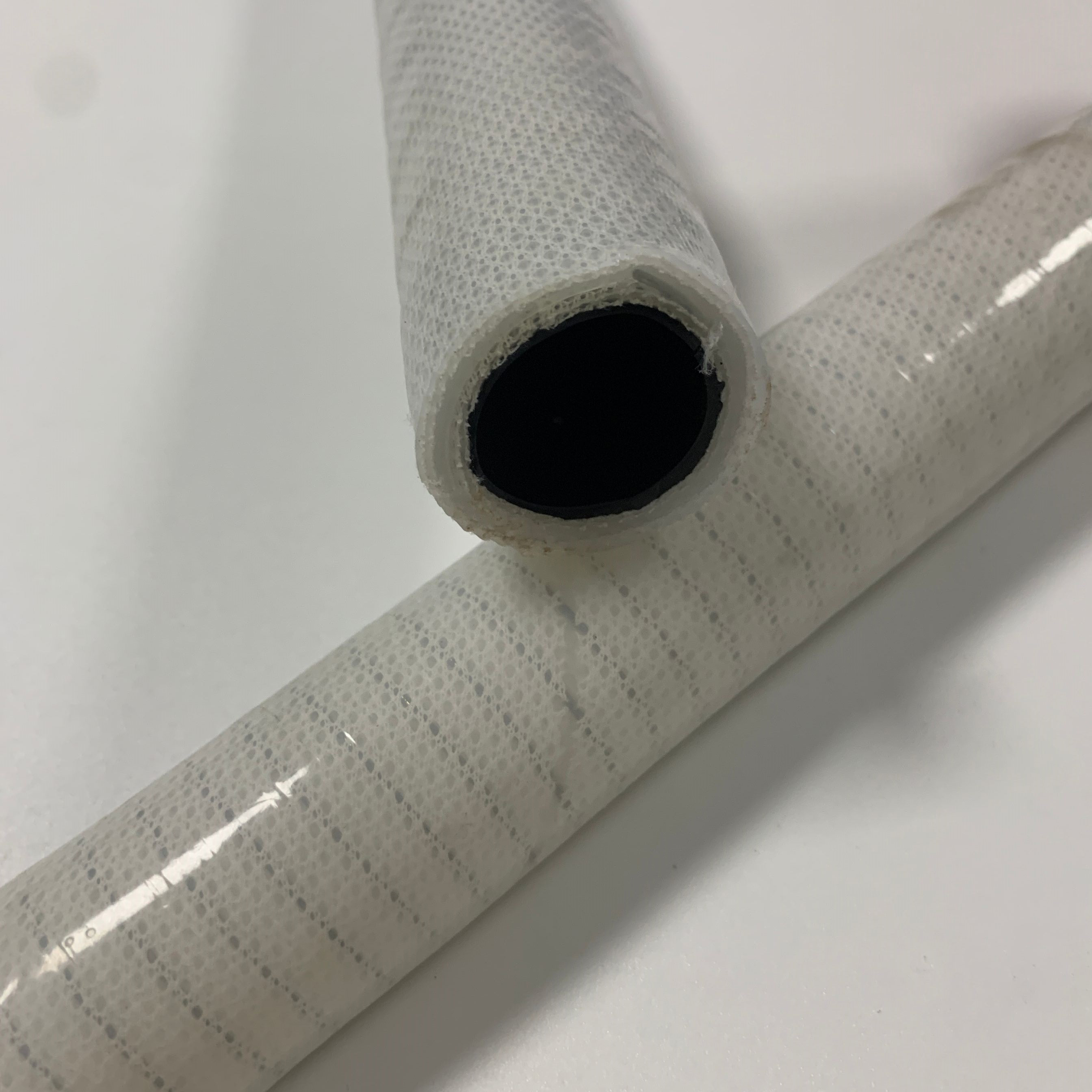

内管：黑色导电FKM 氟橡胶（VITON橡胶）

增强层：螺旋钢丝+四层层纺织层

温度范围：-40°C～+200°C

适用标准或认证：FDA 21 CFR 177.2600

Product application:

The inner layer is a black conductive FKM layer, so it can not only transport corrosive liquids incompatible with silicic acid, such as acid or oil. At the same time, it has excellent anti-static effect, which can be widely used in occasions with high requirements for static electricity to effectively prevent fire caused by static electricity. At the same time, the hose can withstand high temperature, can pass pulse or suction, and can resist pressure or vacuum.

Product structure:

inner layer :Black conductive FKM fluororubber (Viton rubber)

Weaving: 4 layers of cloth woven mesh

Steel wire: using single layer of 304 stainless steel wire, the spacing is 5mm

Temperater:-40-200℃

Centification:FDA 21 CFR 177.2600
