食品级软管

您的当前位置: 首 页 > 产品展示 > > 食品级软管 > 食品级软管

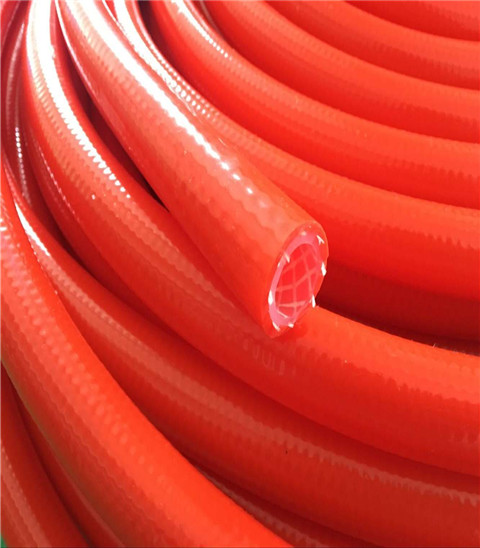

食品级软管

  • 所属分类:食品级软管

  • 点击次数:0
  • 发布日期:2020-05-03 00:00:00
  • 在线询价
详细介绍

食品级软管

应用:

铂金硫化硅胶软管采用中间聚脂编织,应用于低压输送液体,可进行SIP和CIP清洗,具有很好的抗压能力。产品通过大量的物理,化学和生物检测达到FDA CFR 177.2600

不建议用于真空环境;

 产品特性:

铂金硫化硅胶软BG20系列

——工作温度范围‘-60ºC / +200ºC

——具有极好弯曲性,可采用高温高压蒸汽消毒SIP清洗和高温高压清洗CIP。

——无嗅、无味,完全无毒,不含任何塑化剂和添加剂成分

——这些管通常是半透明的,可以观察到流体的动向。我们也可根据客户所需颜色来订制。



品质认证:

——铂金硅胶软管通过美国FDA 21 CFR 177.2600(食品和药物管理局)食品级认证。

——欧盟指令2008/95 / ECC的使用某些有害物质(RoHS)认可。

——铂金硅胶软管符合ISO10993,NSF51和欧洲药典3.1.9的要求。

Remarks:

Standard length: 50 meters or customized according to customer's special needs.


Product application:

The polyester weaving added in the middle for the platinum vulcanization silicone hose, which can be used to delivery the low pressure

liquid and to proceed with SIP cleaning and CIP cleaning. With good compression resistance and meet FDA CFR 177.2600 certificate after plenty of physical, chemical and biological testing.

Not recommended for vacuum environment.


Product characteristics:

-The working temperature range of -60 to +200 degree Celsius.

-With a good bend.high temperature and high pressure steam disinfection cleaning SIP and high temperature and high pressure cleaning CIP can be used.

-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer.

-These tubes are usually translucent and the movement of fluid inside can be observed. The hose color can be customized according to customer's needs.


Quality certification:

-Platinum silicone hoses pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.

-Platinum silicone hoses pass the German BFR parts XV standard certification and LFBG certification.

-Platinum silicone hose is in accordance with the United States Class VI USP grade standard certification.

-Platinum silicone hose is in accordance with the EU directive 2008/95/ECC limitation usage of certain hazardous substances (RoHS) recognition.

-Platinum silicone hose is in accordance with ISO10993, NSF51 and European Pharmacopoeia 3.1.9 requirements.

铂金硫化硅胶软BG20系列
Platinum vulcanization silicone hose BG20
品名
PART NAME

内径
INNER DIA
外径
OUTER DIA
拆弯半径
BEND RADIUS
工作压力
WORK PRESSURE
最大爆破压力
BURST PRESSURE
标准长度
STANDARD LENGTH
(mm)(inch)(mm)(inch)(mm)BarpsiBarpsiM
BG20-0033.00   1/8 9.00 0.35413    27.3 395.8581.9 91420
BG20-0044.00   1/6 10.00 3.9425    26.2 379.978.6 84820
BG20-0055.00   3/1611.00 0.4335    25.0 362.575.0 76920
BG20-0066.35   1/4 13.20 0.4748    23.1 334.9569.3 72520
BG20-0087.93   5/1615.00 0.5955    21.2 307.463.6 65320
BG20-0109.52   3/8 17.00 0.6770    19.1 276.9557.3 60920
BG20-01212.70   1/2 22.00 0.8780    16.2 234.948.6 49320
BG20-01615.87   5/8 27.00 0.9890    15.5 224.7546.5 43520
BG20-01919.05   3/4 31.00 1.22 100    14.5 210.2543.5 31920
BG20-02222.20   3/4 33.00 1.36 120    11.0 159.533.0 29020
BG20-02525.40 1      37.00 1.50 150    9.0 130.527.0 26120
BG20-03231.75 1-1/444.00 1.81 200    8.0 11624.0 21820
